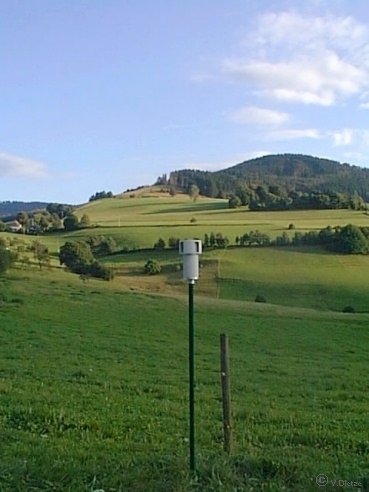

SIGMA-2 sampler in plastics technology



Device for standardized exposure of passive samplers for airborne particles ( VDI 2119, part 4)

and gaseous pollutants in ambient air ( according to DIN EN 13528-3 )



Sigma-2  in chromium-plated  technology



German



    Sampling:
 In the rain and wind shielded interior of the sampler, an adhesive collection plate on the bottom of the unit collects the atmospheric dust particles (sedimentation principle). The collection surface consists of either a transparent, glass-clear sticky foil, or other surface  lightly covered with an adhesive film.  The exposure time is usually one week, but  can be changed if emission or other conditions make it necessary. An analysis of the collection plate is easily done  by optical microscopy.  A detailed description of the passive sampler,  the sampling technique and  performanance characteristics  are published in the VDI guideline 2119, part 4.

Additionally,  the housing of the sample recommended by DIN EN 3528-3 can  be used for wind and sun protected exposure of diffusion samplers for NO2  (according to Palmes) and Benzene (Perkin-Elmer) .



Possible applications:

Easy,  and small technical handling (electrical  independent) makes the sampler suitable for various measuring and monitoring functions,  even on a larger measuring scale.  Coarse  dust particles above 2.5 µm  (soil minerals, combustion residues, tire abrasion, sea salt, pollen and spores) are  sampled by sedimentation after entering the interior of the Sigma-2. Apart from measuring the total number deposition, a single particle analysis provides the size distribution for the different particle groups.

A chemical  analysis of additionally exposed diffusion tubes,  supplies the average NO2 or Benzene  concentration in the exposure time.

Distribution of the SIGMA-2 sampling device in plastics technology and further information:

Mail: Phone, fax and email: Location:
SSP sampler system products
Volker Dietze
P.O.Box 464
79104 Freiburg i.Br.
Germany
phone:  ++ 49 (0) 761 2907138
telefax: ++ 49 (0) 761 2907138

email: vdietze@ssp-europe.com

SSP sampler system products
Volker Dietze
Im Dorf 22
79289 Horben
Germany
